Converting a scikit-learn model to ONNX

This tutorial will demonstrate how you can use the Array API and ndonnx to convert a machine learning model to ONNX.

We will use scikit-learn to train a simple logistic regression model to classify species of the Iris plant using the classic Iris Plant dataset and use ndonnx to convert it to ONNX. We’ll begin with a few imports and by loading the dataset.

from sklearn.datasets import load_iris
from sklearn.linear_model import LogisticRegression
from sklearn.pipeline import make_pipeline
import numpy as np
import ndonnx as ndx
from sklearn.model_selection import train_test_split
import onnx

dataset = load_iris()
X_train, X_test, y_train, y_test = train_test_split(dataset.data, dataset.target, test_size=0.2)

Extend predict in an Array API compatible manner

We should begin by noting that only the inference logic is relevant for deployment. Since we would like to fit our classification model using scikit-learn’s LogisticRegression estimator, we are interested in exporting the logic of it’s prediction method to ONNX.

Unfortunately, LogisticRegression.predict does not yet adhere to the Array API which would have made it immediately convertible to ONNX using ndonnx. scikit-learn’s Array API support is growing over time - functionality that is already Array API compliant will be ONNX convertible without extra work thanks to ndonnx.

Fortunately, we can easily extend LogisticRegression with our own class LogisticRegressionArrayAPI. This extends the prediction logic in an Array API compliant fashion for Array API compliant inputs.

class LogisticRegressionArrayAPI(LogisticRegression):
    def predict(self, X):
        if hasattr(X, "__array_namespace__"):
            xp = X.__array_namespace__()
            coef = xp.asarray(self.coef_)
            intercept = xp.asarray(self.intercept_)
            classes = xp.asarray(self.classes_)
            index = xp.argmax(X @ coef.T + intercept, axis=1)
            return xp.take(classes, xp.astype(index, xp.int32), axis=0)
        else:
            return super().predict(X)

We can now fit our extended LogisticRegression model.

model = LogisticRegressionArrayAPI(C=1e5)
model.fit(X_train, y_train)

Notice how versatile our implementation is now. We can make predictions using a variety of array backends like NumPy, JAX and ndonnx.

import ndonnx as ndx

print(model.predict(X_test))
# array([0, 0, 0, 1, 2, 2, 0, 1, 2, 1, 0, 2, 1, 1, 1, 2, 2, 0, 0, 1, 0, 1, 1, 0, 0, 2, 2, 2, 2, 2])

print(model.predict(ndx.asarray(X_test)).unwrap_numpy())
# array([0, 0, 0, 1, 2, 2, 0, 1, 2, 1, 0, 2, 1, 1, 1, 2, 2, 0, 0, 1, 0, 1, 1, 0, 0, 2, 2, 2, 2, 2])

Exporting to ONNX

Now that we have fit model and it’s inference path predict is Array API compatible, we can export it to ONNX using ndonnx.

Begin by creating a placeholder array representing the input of our model. These are arrays that contain no data, only a shape (which may be symbolic) and data type. The shape is (“N”, 4) since we may have an arbitrary batch dimension “N” and always have 4 features as input.
X = ndx.argument(shape=("N", 4), dtype=ndx.float64)
Call predict just as normal, providing X as input. The output array also does not have any data associated with it since its value depends on X.
y = model.predict(X) assert y.unwrap_numpy() is None
Build the ONNX graph with ndonnx.build() and persist it to disk. The dictionary names are the names given to the inputs and outputs in the ONNX graph.
onnx_model = ndx.build({"X": X}, {"y": y}) onnx.save(onnx_model, "classify_iris.onnx")

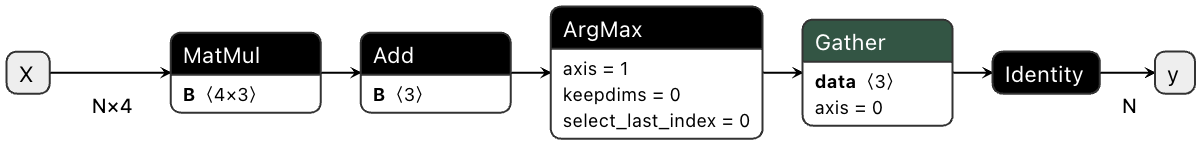

Visualize the ONNX model using Netron. It’s a fairly small model and you might be able to carefully map some of the ONNX operators to the operations that generated them.

Use the ONNX model in production

Now we have our model computation and weights saved to disk as an ONNX file, we have tremendous amounts of flexibility to integrate our model into a wider system. We can use an ONNX backend like onnxruntime to run our model. Here we use onnxruntime’s python bindings to make a prediction.

import onnxruntime as ort

# Instantiate runtime session
inference_session = ort.InferenceSession("classify_iris.onnx")

# Inference!
out, = inference_session.run(None, {"X": X_test})

print(out)
# array([0, 0, 0, 1, 2, 2, 0, 1, 2, 1, 0, 2, 1, 1, 1, 2, 2, 0, 0, 1, 0, 1, 1, 0, 0, 2, 2, 2, 2, 2])
